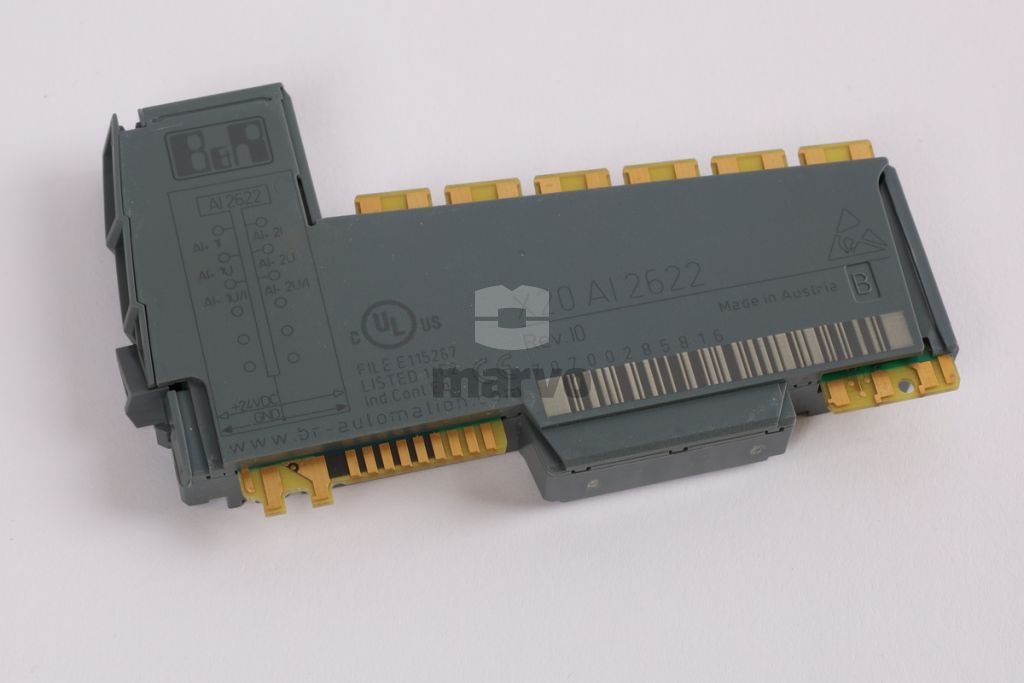

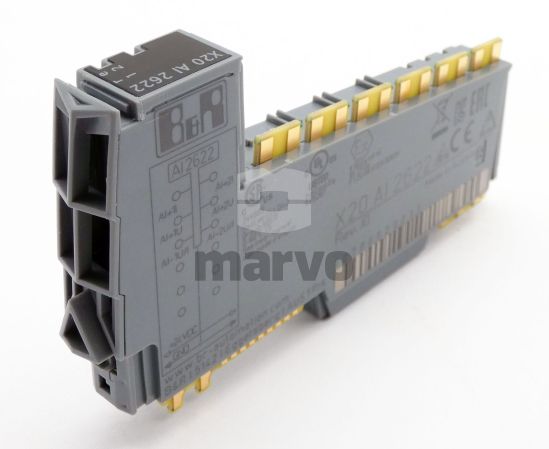

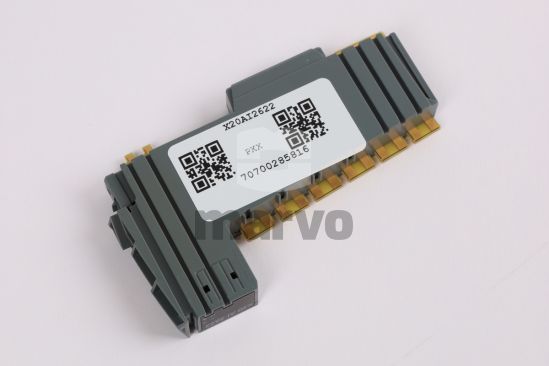

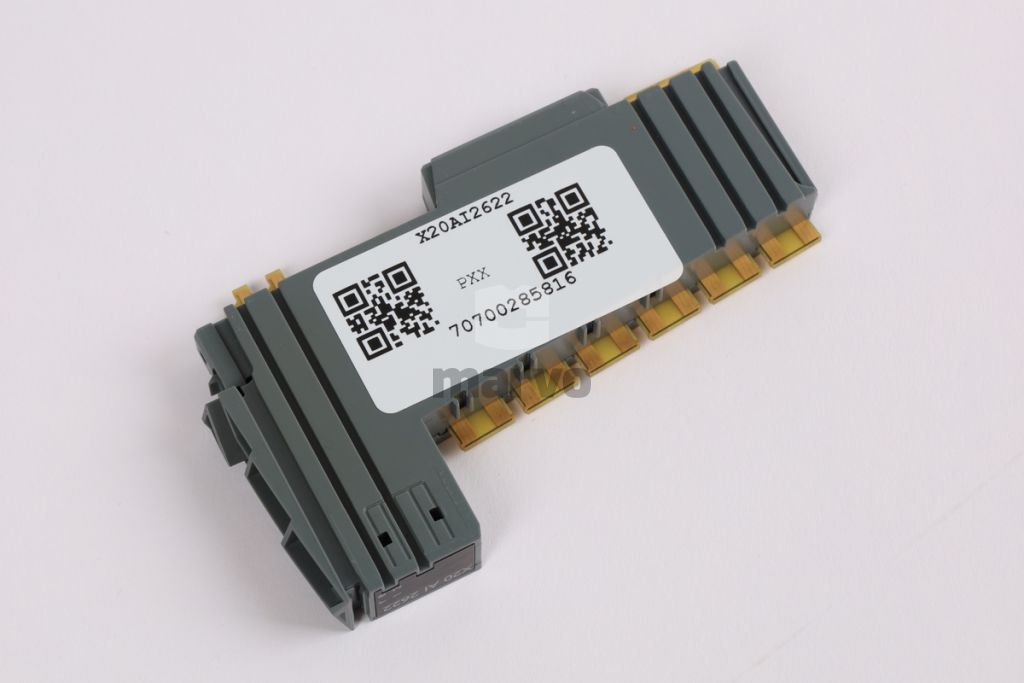

X20AI2622

Marvo Part ID: MV-AYRK

£154.94 (ex. VAT)

B&R

Trustpilot Stars Qty
Express delivery guaranteed

If ordered within 00:00:00

Returns

You can return your part(s) and request a full refund at any time. Refer to our returns policy for more information.

Accepted payment methods:

Stripe logo Paypal logo Visa logo Mastercard logo American Express logo Bank Transfer logo

Stars Nathalie Jolicoeur

‘Great service. Thank you.’

Stars Advance Lifts

‘Great customer service , we needed some assistance quickly and received it.’

Specifications

Specification Description
Part Number X20AI2622
Manufacturer B&R
Category General Automation
Mounting Orientation Horizontal/Vertical
Weight 0.090 kg
Dimensions (H x W x D) 80.00 mm x 10.00 mm x 50.00 mm
Commodity Code 853710
Analogue Inputs 2 inputs, ±10 V or 0 to 20 mA / 4 to 20 mA, 13-bit resolution
Input Type Differential inputs
Digital Conversion 13-bit resolution, including sign
Conversion Time 300 μs for all inputs
Output Format INT data type
Input Impedance Voltage: 20 MΩ, Current: <400 Ω
Input Protection Protection against connection to supply voltage
Operating Temperature Horizontal mounting: -25 to 60°C, Vertical mounting: -25 to 50°C
Storage Temperature -40 to 85°C
Relative Humidity 5 to 95%, non-condensing
Certifications CE, KC, UL, cULus, ATEX, FTZÚ, DNV GL, LR, GOST-R
Input Signal Filtering 3rd order low-pass filter, configurable corner frequency
Error Detection Overload, underload, wire-break detection (voltage measurement only)
Electrical Isolation Channel to bus isolated, channel to channel not isolated
Installation Elevation Up to 2000 m without derating, above 2000 m with temperature reduction per 100 m elevation
Degree of Protection IP20
LED Indicators Indicate module status, I/O function, and error states
Required Accessories Terminal blocks (X20TB06 or X20TB12) and power supply bus module (X20BM11) sold separately

Commonly Asked Questions

Is my order covered by a warranty?

Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.

Read more...

What payment methods do you accept?

We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.

Read more...

What countries can Marvo deliver to?

Marvo currently delivers to the United Kingdom (excluding Northern Ireland), the United States of America and Germany. If you cannot find your delivery address at checkout, this is most likely because Marvo does not currently deliver to this location. There are ongoing efforts to make Marvo accessible to a global market, keep your eyes peeled as our service expands to new locations. All orders are sold with a streamlined delivery process ensuring that you get your part, fast. Marvo is designed to offer you quick, easy and reliable access to critical components and uses well established global shipping services, including but not limited to DHL, UPS and FedEx.

Read more...

Is Marvo a credible parts supplier?

Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.

Read more...

Have steps been taken to ensure quality control?

Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.

Read more...

How do I create an account?

Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.

Read more...

Peace of mind with every purchase

Checkmark

Marvo Approved

A seal of quality that ensures each part is fully inspected, every time. Purchase with confidence thanks to Marvo Approved.

Shield

Full warranty

All parts are covered by a comprehensive warranty. If something goes wrong, I’ll put it right.

Stopwatch

Priority delivery

Advanced tracking and a streamlined delivery process ensure that you get your part, fast.

Stars

Committed to you

Engineered to ensure that you always have a quick, easy and reliable place to source automation and control components.

X20AI2622 Product Description

The B&R X20AI2622 is a highly precise analogue input module designed to seamlessly integrate into a variety of industrial automation systems. This module is equipped with two inputs that boast a 13-bit digital converter resolution, ensuring accurate and reliable data capture for your process control needs.

Engineered for flexibility, the X20AI2622 allows users to select between current and voltage signals through different terminal points, catering to a wide range of signal requirements. The module is compatible with the X20 6-way terminal block, although a 12-way terminal block can also be utilised for added convenience.

With its compact dimensions, the X20AI2622 is an ideal choice for space-constrained applications, while its robust construction ensures it can withstand the rigours of industrial environments. The module operates efficiently within a temperature range suitable for most industrial settings and is designed for both horizontal and vertical mounting orientations, providing versatility in installation.

The X20AI2622 module is characterised by its user-configurable input filters, which can be tailored to meet the specific demands of your application, enhancing signal stability and reducing the impact of noise and disturbances. This feature, combined with the module's swift conversion time, ensures that the data provided is both timely and accurate.

For those seeking a reliable and adaptable solution for their analogue signal processing needs, the B&R X20AI2622 analogue input module stands out as a smart investment for any industrial automation system.

Frequently Asked Questions

What type of signals can the X20AI2622 module process?

The X20AI2622 module is capable of processing both current and voltage signals. It can handle ±10 V voltage signals or 0 to 20 mA / 4 to 20 mA current signals, offering flexibility for various industrial applications.

How is the digital resolution of the X20AI2622 module's inputs?

The module boasts a 13-bit digital resolution, including the sign bit, which allows for precise measurement and conversion of analogue signals to digital form.

Can the input type be configured on the X20AI2622 module?

Yes, the module allows for the selection between current and voltage signals through different terminal connections, and it features an integrated switch for automatic configuration based on the input type.

What are the environmental operating conditions for the X20AI2622 module?

The module can operate in temperatures ranging from -25 to 60°C for horizontal mounting orientation and -25 to 50°C for vertical mounting. It is designed to function at an installation elevation of 0 to 2000 meters above sea level without limitations.

Does the X20AI2622 module have any diagnostic capabilities?

Yes, the module includes diagnostic capabilities through status LEDs and software status for module run/error, input status, and channel type, enhancing the ability to monitor and troubleshoot the system.

What certifications does the X20AI2622 module hold?

The module holds several certifications, including CE, KC, UL, cULus, ATEX, and more, ensuring compliance with various international standards and regulations.

Is there any protection against incorrect wiring for the X20AI2622 module?

The module is designed with input protection to safeguard against miswiring with the supply voltage, providing an additional layer of security for the system.

How does the X20AI2622 module handle input signal filtering?

The module is equipped with a configurable input filter to manage signal noise and disturbances, ensuring accurate signal processing. The filter's response can be adjusted to suit the application's requirements.

What is the purpose of the status LEDs on the X20AI2622 module?

The status LEDs on the module provide visual diagnostics for the module's operational status, input signal integrity, and any error conditions, facilitating quick identification of issues.

Can the X20AI2622 module be used in hazardous locations?

Yes, the module is suitable for use in hazardous locations and is certified for ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc, ensuring safe operation in such environments.
