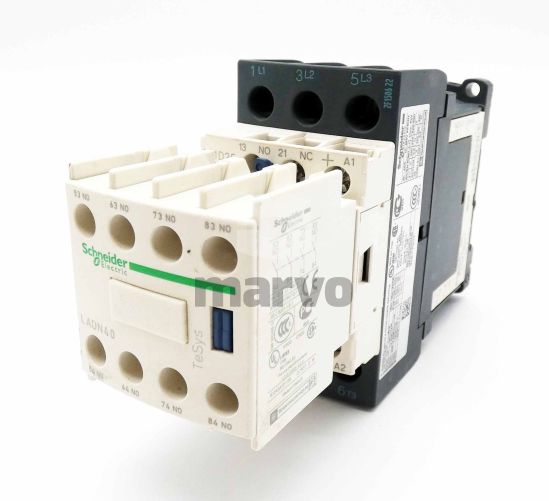

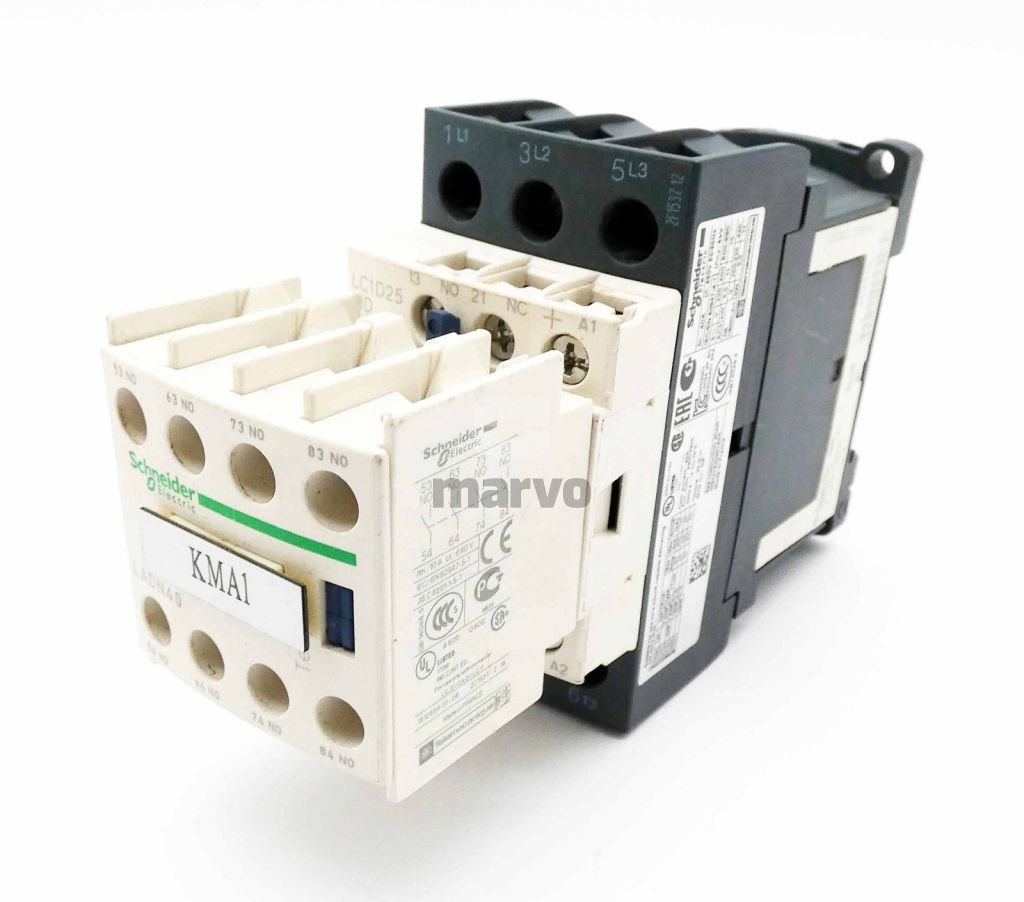

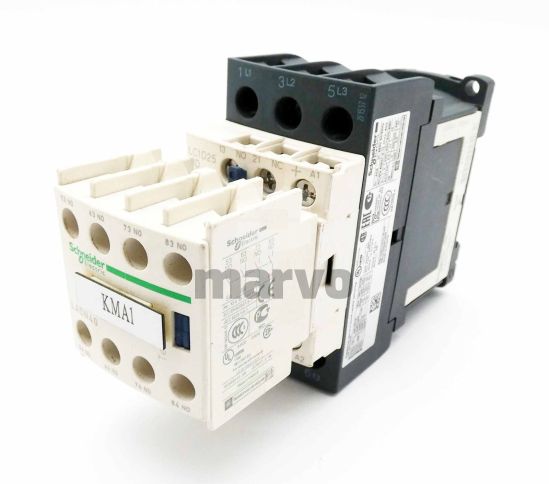

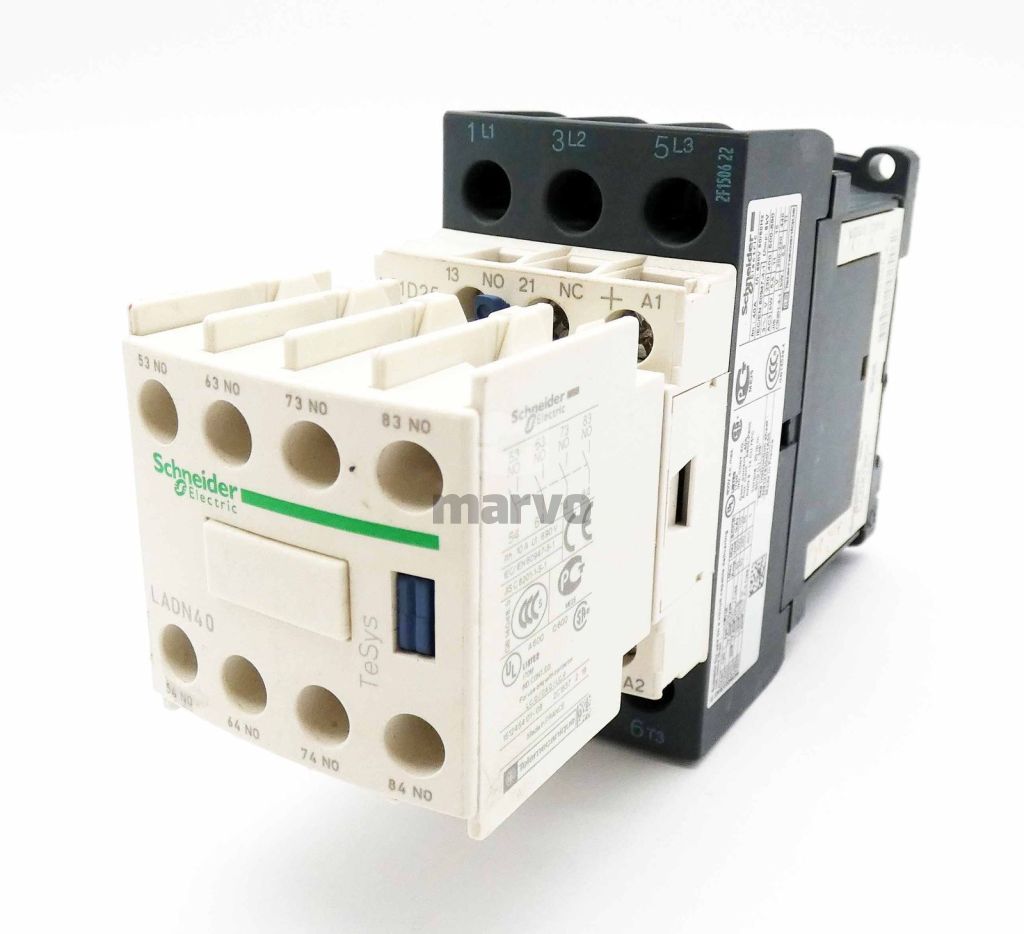

LC1D25BD

Marvo Part ID: MV-28M6

£106.25 (ex. VAT)

Schneider

Trustpilot Stars Qty

Accepted payment methods:

Stripe logo
Paypal logo
Visa logo
Mastercard logo
American Express logo
Bank Transfer logo

Returns

You can return your part(s) and request a full refund at any time. Refer to our returns policy for more information.

Stars Martin Juřica

‘Fast offer, short delivery time.’

Stars Irene

‘Fast delivery and prompt action.’

Get your order by 25/06/2024

If ordered within 00:00:00

Find out more

Specifications

Specification Description
Part Number LC1D25BD
Manufacturer Schneider
Category General Automation
Type Contactor
Poles 3 Pole
Contact Composition 3 NO (Normally Open)
Rated Operational Current 25 A at <= 440 V AC AC-3 power circuit
Control Circuit Type DC standard
Control Circuit Voltage 24 V DC
Auxiliary Contact Composition 1 NO + 1 NC
Rated Impulse Withstand Voltage 6 kV conforming to IEC 60947
Overvoltage Category III
Conventional Free Air Thermal Current 40 A at <= 140 °F (60 °C) power circuit
Rated Making Capacity 450 A at 440 V power circuit conforming to IEC 60947
Rated Breaking Capacity 450 A at 440 V power circuit conforming to IEC 60947
Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1
Average Impedance 2 mOhm at Ith 40 A 50 Hz power circuit
Power Dissipation Per Pole 3.2 W AC-1, 1.25 W AC-3, 1.25 W AC-3e
Operating Time 53.55...72.45 ms closing, 16...24 ms opening
Maximum Operating Rate 3600 cyc/h at 140 °F (60 °C)
Tightening Torque Control circuit 1.7 N.m, Power circuit 2.5 N.m
Height 85 mm
Width 45 mm
Depth 101 mm
Net Weight 0.53 kg
Product Life Status Commercialised
Sustainable Offer Status Green Premium product
REACh Regulation Compliant
EU RoHS Directive Compliant
Mercury Free Yes
PVC Free Yes

Commonly Asked Questions

What payment methods do you accept?

We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.

Read more...

Is my order covered by a warranty?

Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.

Read more...

What countries can Marvo deliver to?

Marvo currently delivers to the United Kingdom (excluding Northern Ireland), the United States of America and Germany. If you cannot find your delivery address at checkout, this is most likely because Marvo does not currently deliver to this location. There are ongoing efforts to make Marvo accessible to a global market, keep your eyes peeled as our service expands to new locations. All orders are sold with a streamlined delivery process ensuring that you get your part, fast. Marvo is designed to offer you quick, easy and reliable access to critical components and uses well established global shipping services, including but not limited to DHL, UPS and FedEx.

Read more...

How do I create an account?

Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.

Read more...

Is Marvo a credible parts supplier?

Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services.  Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.

Read more...

Have steps been taken to ensure quality control?

Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.

Read more...

Peace of mind with every purchase

Checkmark

Marvo Approved

A seal of quality that ensures each part is fully inspected, every time. Purchase with confidence thanks to Marvo Approved.

Shield

Full warranty

All parts are covered by a comprehensive warranty. If something goes wrong, I’ll put it right.

Stopwatch

Priority delivery

Advanced tracking and a streamlined delivery process ensure that you get your part, fast.

Stars

Committed to you

Engineered to ensure that you always have a quick, easy and reliable place to source automation and control components.

LC1D25BD Product Description

The Schneider LC1D25BD is a robust and reliable contactor designed to facilitate the control of motor operations and resistive loads in a wide array of industrial applications. This three-pole contactor is engineered to handle a rated operational current of 25 A under AC-3 utilisation category, making it suitable for managing motors with power ratings up to 11 kW at 380...400 V AC 50/60 Hz.

Featuring a 24 V DC control circuit voltage, the LC1D25BD ensures compatibility with various DC control systems. The auxiliary contact composition of 1 NO + 1 NC adds to its versatility, allowing for integration into safety and interlock circuits. With a rated impulse withstand voltage of 6 kV in accordance with IEC 60947, this contactor is designed to withstand electrical disturbances and surges, ensuring stable operation.

The compact dimensions of 45 mm width, 85 mm height, and 99 mm depth, along with an IP20 front face protection, make the LC1D25BD suitable for installation in confined spaces while maintaining a degree of protection against touch and foreign objects. Its compliance with international standards, including EN/IEC 60947-4-1 and EN/IEC 60947-5-1, underscores its quality and suitability for global industrial environments.

The LC1D25BD is part of Schneider Electric's Green Premium product range, reflecting a commitment to environmental sustainability and compliance with the latest environmental regulations, including REACh and RoHS. This contactor is an ideal choice for those seeking a balance between performance, reliability, and environmental responsibility in their electrical control solutions.

Frequently Asked Questions

What is the utilisation category of this contactor?

The contactor is suitable for motor control and resistive load applications, falling under utilisation categories AC-1, AC-3, AC-4, and AC-3e.

Can this contactor be used with different power circuit voltages?

Yes, it can be used with power circuits up to 690 V AC at 25...400 Hz and up to 300 V DC.

What are the dimensions of this contactor?

The contactor has a height of 85 mm, a width of 45 mm, and a depth of 99 mm.

What type of control circuit does this contactor use?

This contactor uses a DC standard control circuit with a control circuit voltage of 24 V DC.

What is the rated operational current of this contactor?

The rated operational current is 25 A for power circuits at less than or equal to 440 V AC in AC-3 utilisation category.

What is the composition of the pole contacts for this contactor?

The contactor has a pole contact composition of 3 NO (Normally Open) contacts.

What is the auxiliary contact composition of this contactor?

The contactor comes with an auxiliary contact composition of 1 NO (Normally Open) + 1 NC (Normally Closed).

What are the environmental specifications of this contactor?

The contactor is compliant with the EU RoHS Directive, is mercury-free, PVC-free, and has a Green Premium status.

What certifications does this contactor hold?

The contactor is certified by multiple organisations, including CSA, UL, and it conforms to IEC standards.

What is the insulation resistance of the signalling circuit?

The insulation resistance of the signalling circuit is greater than 10 MOhm.
