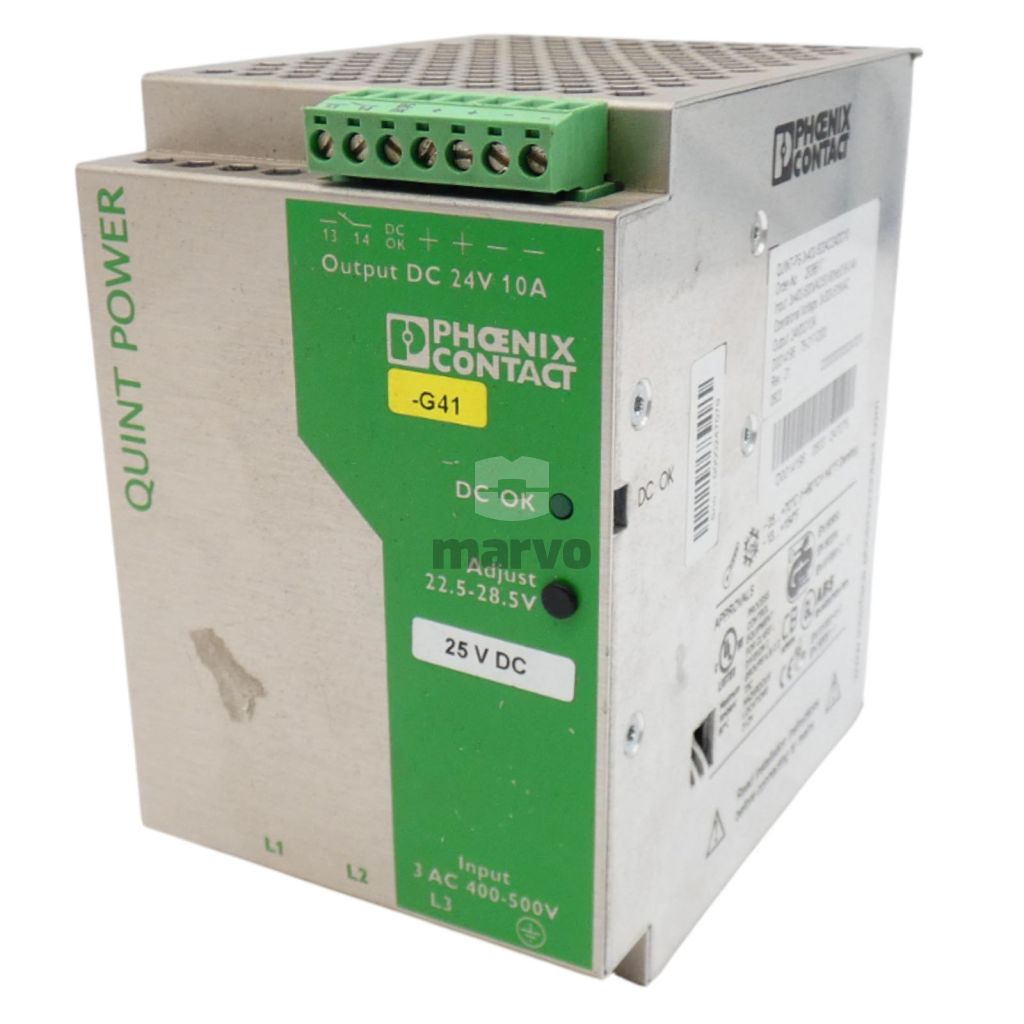

The Phoenix Contact QUINT-PS-3X400-500AC/24DC/10 is a robust and efficient power supply unit designed for industrial applications. This three-phase primary-switched power supply unit offers a nominal output voltage of 24 V DC with a current capacity of 10 A, making it ideal for demanding environments where reliability and performance are paramount. With an adjustable output voltage range between 22.5 and 28.5 V DC, it provides flexibility to meet specific application requirements.
Engineered for durability, the QUINT-PS-3X400-500AC/24DC/10 features a high efficiency of over 90%, ensuring minimal energy loss and optimal performance. The unit is equipped with comprehensive protection features, including electronic short-circuit and overload protection, safeguarding connected devices from potential damage. Its robust design includes a wide operating temperature range from -25°C to +70°C, allowing it to function effectively in various environmental conditions.
The power supply unit is designed for easy installation on horizontal DIN rails, conforming to EN 60715 standards, and supports parallel operation for increased redundancy and power. It also includes a DC OK LED indicator for easy status monitoring, ensuring that users can quickly assess the operational state of the unit. With its compact dimensions and reliable performance, the Phoenix Contact QUINT-PS-3X400-500AC/24DC/10 is an excellent choice for powering industrial systems and ensuring uninterrupted operation.
| Specification | Description |
|---|---|
| Part Number | QUINT-PS-3X400-500AC/24DC/10 |
| Manufacturer | Phoenix Contact |
| Input Voltage Range | 3 x 400...500 V AC |
| Output Voltage | 24 V DC (adjustable between 22.5 and 28.5 V DC) |
| Output Current | 10 A (-25...+60°C), 15 A with POWER BOOST (-25...+40°C) |
| Efficiency | > 90% |
| Protection Class | I, with PE connection |
| Degree of Protection | IP20 |
| Mounting Position | Horizontal DIN rail NS 35, EN 60715 |
| Dimensions | 85 mm x 130 mm x 125 mm |
| Weight | 1.1 kg |
| Operating Temperature | -25°C to +70°C (derating above 60°C) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% (at 25°C, no condensation) |
| MTBF | > 500,000 hours according to IEC 61709 (SN 29500) |
| Certifications | UL/C-UL Listed UL 508, UL/C-UL Recognized UL 60950, UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D |
| Description | The Phoenix Contact QUINT-PS-3X400-500AC/24DC/10 is a robust and efficient power supply unit designed for industrial applications. It offers a reliable 24 V DC output with adjustable voltage settings, ensuring flexibility and adaptability to various system requirements. With a high efficiency of over 90%, it minimizes energy loss and supports a wide operating temperature range, making it suitable for demanding environments. The unit is equipped with comprehensive protection features and is certified for use in hazardous locations, providing peace of mind in critical operations. Its compact design and easy DIN rail mounting make it a convenient choice for space-constrained installations. |
