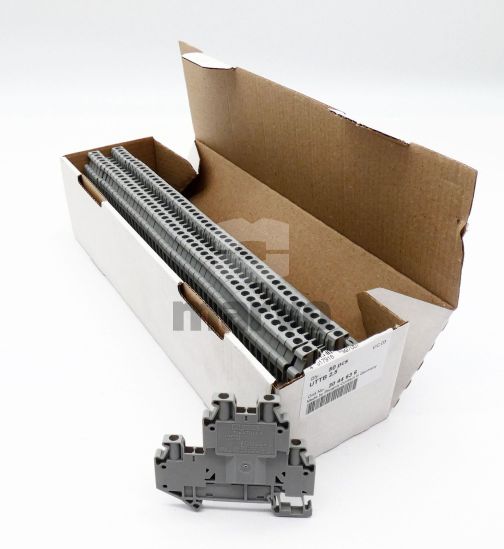

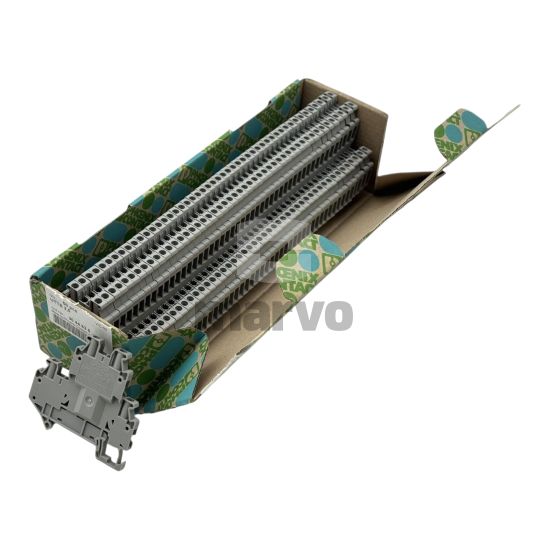

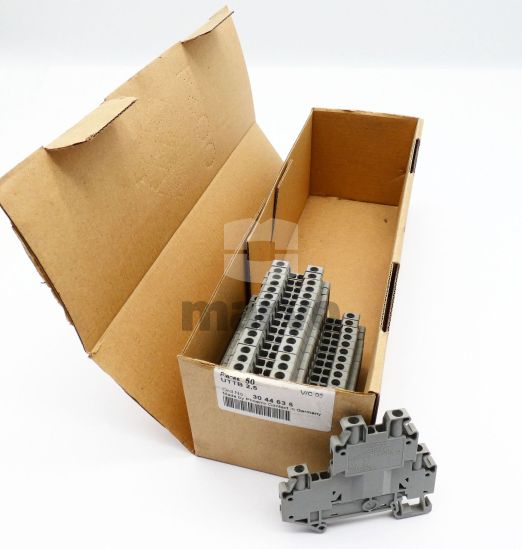

Image shown may not reflect the final product
From Fortune 500 enterprises to innovative startups, leading companies choose Marvo for reliable automation and control components.
"Excellent service, especially from Mark, who stayed late to make sure the part arrived the same day since it was a critical component for me, even though it was my first time using Marvo. I will definitely use them again."
The Phoenix Contact UTTB 2,5 is a high-quality double-level terminal block designed for efficient and reliable electrical connections. This component is ideal for use in a variety of industrial applications, including railway, machine building, plant engineering, and process industries. The UTTB 2,5 features a compact design with a width of 5.2 mm, making it suitable for installations where space is limited. It supports a conductor cross-section range from 0.14 mm² to 4 mm², accommodating both solid and flexible conductors. The terminal block is equipped with a screw connection method, ensuring secure and stable connections. It is rated for a nominal voltage of 500 V and a nominal current of 24 A, with a maximum load current of 28 A. The UTTB 2,5 is constructed from high-quality insulating materials, providing excellent durability and resistance to environmental factors. It complies with international standards, including IEC 60947-7-1, and has a flammability rating of UL 94V0, ensuring safety and reliability in demanding conditions.
| Specification | Description |
|---|---|
| Part Number | UTTB 2,5 |
| Manufacturer | Phoenix Contact |
| Part Type | Double-level terminal block |
| Connection Method | Screw connection |
| Conductor Cross Section (Solid) | Min: 0.14 mm², Max: 4 mm² |
| Conductor Cross Section (Flexible) | Min: 0.14 mm², Max: 4 mm² |
| Nominal Current | 24 A |
| Maximum Load Current | 28 A (with 4 mm² conductor cross section) |
| Nominal Voltage | 500 V |
| Rated Surge Voltage | 6 kV |
| Flammability Rating | UL 94V0 |
| Operating Temperature | -60 °C to 105 °C (max. short-term 130 °C) |
| Storage Temperature | -25 °C to 60 °C (short-term -60 °C to 70 °C) |
| Dimensions | Width: 5.2 mm, Length: 69.9 mm, Height: 64.4 mm |
| Standards | IEC 60947-7-1 |
| Environmental Compliance | China RoHS, Environmentally Friendly Use Period = 50 years |
| Application Areas | Railway industry, Machine building, Plant engineering, Process industry |
The Phoenix Contact UTTB 2,5 is a robust double-level terminal block designed for efficient and reliable electrical connections. It features a screw connection method, accommodating both solid and flexible conductors with cross sections ranging from 0.14 mm² to 4 mm². With a nominal current of 24 A and a maximum load current of 28 A, this terminal block is suitable for a variety of industrial applications, including railway, machine building, and process industries. It is built to withstand harsh environments, with an operating temperature range from -60 °C to 105 °C and a flammability rating of UL 94V0. The UTTB 2,5 complies with IEC 60947-7-1 standards, ensuring high performance and safety in demanding conditions.
