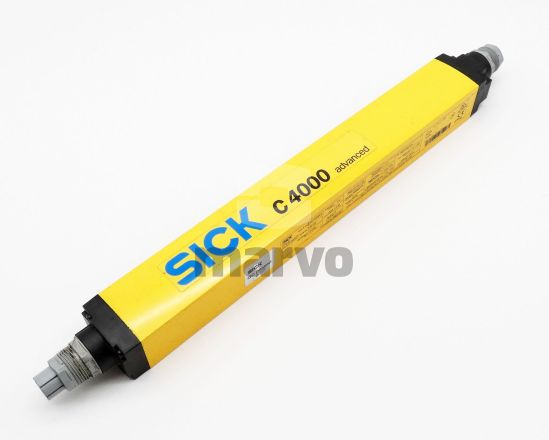

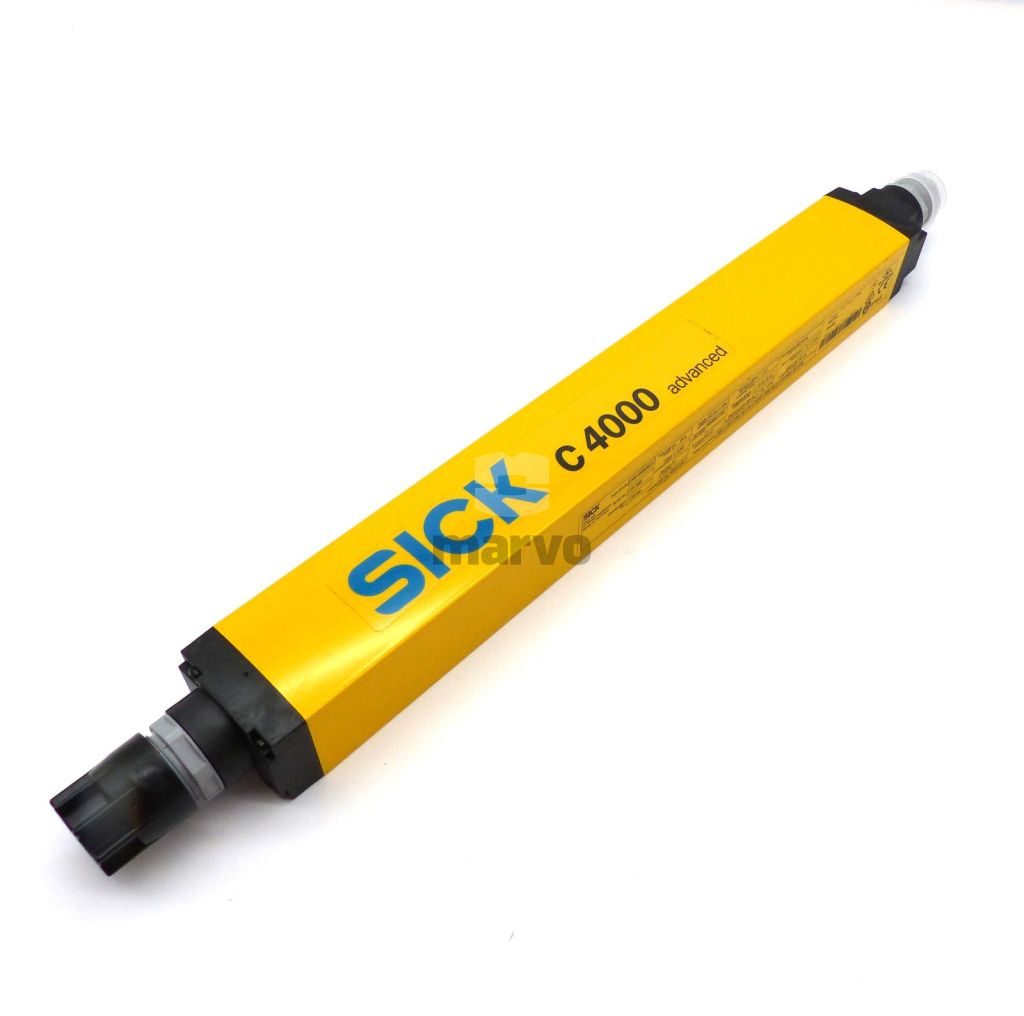

The Sick C40E-0303DB010 is a sophisticated component from the C4000 Advanced series, designed to enhance industrial safety through its advanced optoelectronic technology. This part functions as a safety light curtain, providing reliable protection in various industrial environments. It features a resolution of 30 mm and a protective field height of 300 mm, making it suitable for safeguarding areas with a range of up to 21 meters. The device is equipped with configurable range settings and supports safe communication between SICK devices via EFI. Its robust construction includes an aluminium housing with a cross-section of 48 mm x 40 mm, ensuring durability and resilience in demanding conditions. The C40E-0303DB010 operates within a temperature range of 0 °C to +55 °C and is rated with an IP65 enclosure, offering excellent protection against dust and water ingress. This part is ideal for applications requiring high safety integrity, with compliance to Type 4 (IEC 61496-1) and SIL 3 (IEC 61508) standards.
| Specification | Description |
|---|---|
| Part Number | C40E-0303DB010 |
| Manufacturer | Sick |
| Product Family | C4000 Advanced |
| Type | Safety Light Curtain |
| Resolution | 30 mm |
| Range | Up to 21 meters |
| Protection Height | 300 mm |
| Response Time | 10 ms |
| Synchronisation | Optical |
| Safety Integrity | SIL 3 (IEC 61508) |
| Performance Level | PL e (EN ISO 13849) |
| Category | Category 4 (EN ISO 13849) |
| Protection Class | IP65 (EN 60529) |
| Operating Voltage | 24 V DC (19.2 V ... 28.8 V) |
| Housing Material | Extruded aluminium profiles |
| Dimensions | 48 mm x 40 mm |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Humidity | 15% to 95%, non-condensing |
| Vibration Resistance | 5 g, 10 Hz to 55 Hz (EN 60068-2-6) |
| Shock Resistance | 10 g, 16 ms (EN 60068-2-27) |
| Description | The Sick C40E-0303DB010 is a high-performance safety light curtain designed for industrial environments. It offers a robust solution for safeguarding machinery and personnel with its advanced optical technology. The device features a compact design with a high protection class, making it suitable for various applications where safety and reliability are paramount. Its easy integration and configuration capabilities ensure seamless operation within existing systems. |
