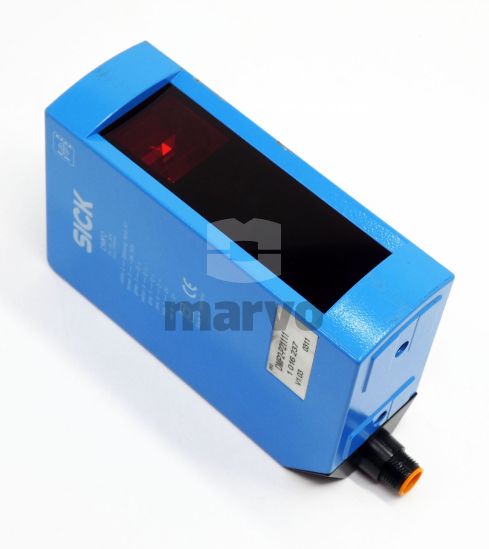

The Sick DMP2 DMP2-P21111 is a high-performance position sensor designed for precision measurement tasks. This robust device is engineered to operate efficiently within a working distance range of 200 mm to 2,000 mm, depending on the reflector used. It features a red LED light source and offers a switching frequency of 250 Hz, ensuring rapid response times and high accuracy with a reproducibility of 0.15 mm. The sensor is equipped with a PNP output configuration and supports a supply voltage range of 18 V to 30 V DC. Its durable construction, rated at IP67, makes it suitable for challenging industrial environments, providing reliable performance even under harsh conditions. The DMP2 DMP2-P21111 is an ideal choice for applications requiring precise position detection and measurement.
| Specification | Description |
|---|---|
| Part Number | DMP2 DMP2-P21111 |
| Manufacturer | Sick |
| Measurement Object | Reflector |
| Operating Distance | 200 mm to 500 mm (PL22), 500 mm to 1,200 mm (PL50A), 500 mm to 2,000 mm (Reflector PL80A) |
| Reproducibility | 0.15 mm |
| Response Time | 3 ms |
| Switching Frequency | 250 Hz |
| Light Source | Red LED |
| Scanning Angle | ± 10° |
| Operating Mode | Continuous or triggered |
| Output Signal Type | 5 x PNP |
| Supply Voltage | DC 18 V to 30 V |
| Connection Type | M12, 8-pin connector |
| Dimensions | 43 mm x 81.5 mm x 124.5 mm |
| Mounting Thread | M6, depth 8 mm |
| Description | The Sick DMP2 DMP2-P21111 is a versatile position finder designed for precise measurement tasks. It offers a wide operating distance range and high reproducibility, making it ideal for various applications. |
