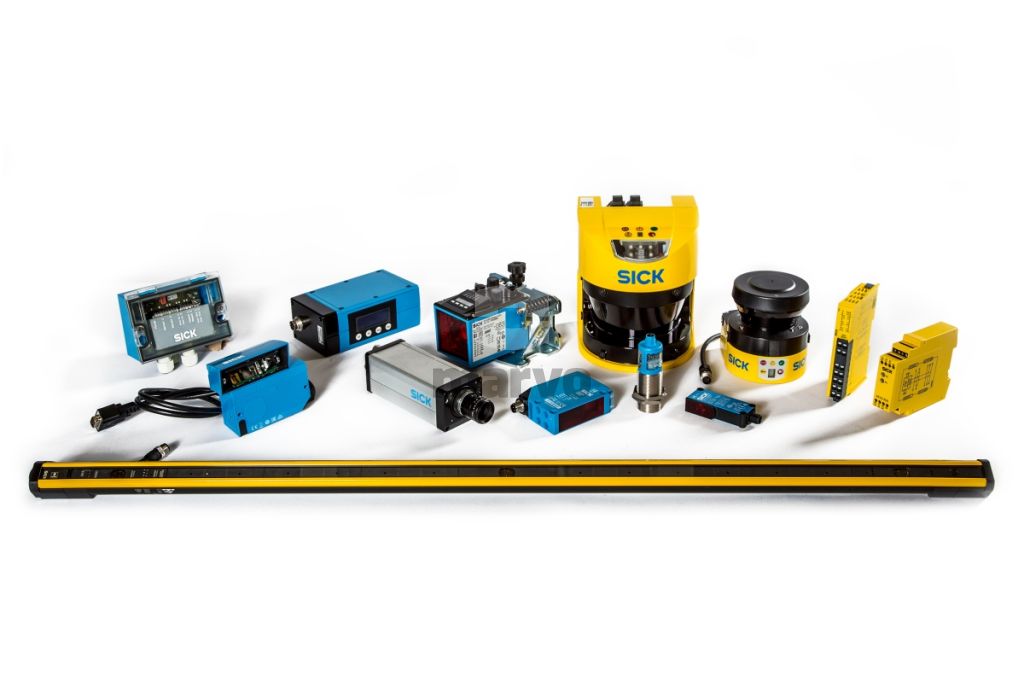

Image shown may not reflect the final product
From Fortune 500 enterprises to innovative startups, leading companies choose Marvo for reliable automation and control components.
"First time working with Marvo. They had what I needed, took great care of me, and got my order out right away. I was very impressed with the service and the person I spoke with. I will definitely work with them again in the future."
The Sick MZT7-03VPS-KU0 is a high-performance sensor designed for T-slot cylinders, offering reliable and precise detection capabilities. This sensor features a robust plastic housing and a durable 2-meter PVC cable, ensuring long-lasting performance even in demanding industrial environments. With an operating temperature range of -30°C to +80°C, it is suitable for a wide variety of applications.
The MZT7-03VPS-KU0 is equipped with a PNP switching output and a 3-wire DC configuration, providing a switching frequency of up to 1,000 Hz. It includes an LED status indicator for easy monitoring of the sensor's operational state. The sensor is designed to withstand shocks and vibrations, with a resistance rating of 30 g, 11 ms / 10 ... 55 Hz, 1 mm, and complies with EMC standards according to EN 60947-5-2.
This sensor is ideal for use with various cylinder types, including profile cylinders, tie rod cylinders, round body cylinders, and dovetail groove cylinders. It offers a high degree of protection with IP65 and IP67 ratings, ensuring reliable operation in harsh conditions. The MZT7-03VPS-KU0 also features reverse polarity and short-circuit protection, enhancing its durability and reliability in industrial applications.
With its compact design, measuring just 29.5 mm in housing length, the MZT7-03VPS-KU0 is easy to install and integrate into existing systems. Its high reproducibility and low hysteresis make it a dependable choice for precise position sensing in automation and control systems.
| Specification | Description |
|---|---|
| Part Number | MZT7-03VPS-KU0 |
| Manufacturer | Sick |
| Category | Sensors for T-slot Cylinders |
| Housing Material | Plastic |
| Cable Material | PUR (Polyurethane) |
| Connection Type | Cable, 3-wire, 2 m |
| Conductor Cross Section | 0.14 mm² |
| Cable Diameter | Ø 2.9 mm |
| Bending Radius (Fixed) | > 3 x cable diameter |
| Bending Radius (Flexible) | > 10 x cable diameter |
| Torsion Force | ± 270° / 10 cm |
| Torsion Cycles | > 2,000,000 |
| Shock and Vibration Resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient Operating Temperature | –30 °C ... +80 °C |
| Enclosure Rating | IP65, IP67 |
| Supply Voltage | 10 V DC ... 30 V DC |
| Power Consumption | 8 mA, without load |
| Voltage Drop | ≤ 2V |
| Continuous Current Ia | ≤ 100 mA |
| Switching Frequency | 1,000 Hz |
| Output Function | NO (Normally Open) |
| Electrical Wiring | DC 3-wire |
| Reverse Polarity Protection | Yes |
| Short-circuit Protection | Yes |
| MTTFD (Mean Time to Dangerous Failure) | 1,600 years |
| Housing Length | 29.5 mm |
| LED Status Indicator | Yes |
| EMC | According to EN 60947-5-2 |
| UL File Number | NRKH.E181493 & NRKH7.E181493 |
| Classification | ECLASS 5.0: 27270104, ECLASS 12.0: 27274301, ETIM 8.0: EC002544, UNSPSC 16.0901: 39122230 |
